3...2...1... - Liftoff!

Klemen Špruk

klemen.spruk@alef.com

Da bi okrepili sodobno organizacijo, je nujno potreben hiter in zanesljiv brezžični internet. Lažje kot je omrežje za vzpostavitev ter upravljanje bolje deluje Wi-Fi na določenem področju, večje so možnosti da organizacije ustvarijo boljše digitalne izkušnje.

Meraki želi organizacijam pomagati pri uvajanju novih izkušenj za svoje stranke in zaposlene. Zato ponujamo poseben popust za nekatere brezžične dostopne točke, ki so preproste za konfiguracijo in so primerna za večja ali manjša podjetja.

3...2...1... - Liftoff!

Za omejen čas dobite 3 dostopne točke Meraki za ceno 2 - to je 1 velik popust!

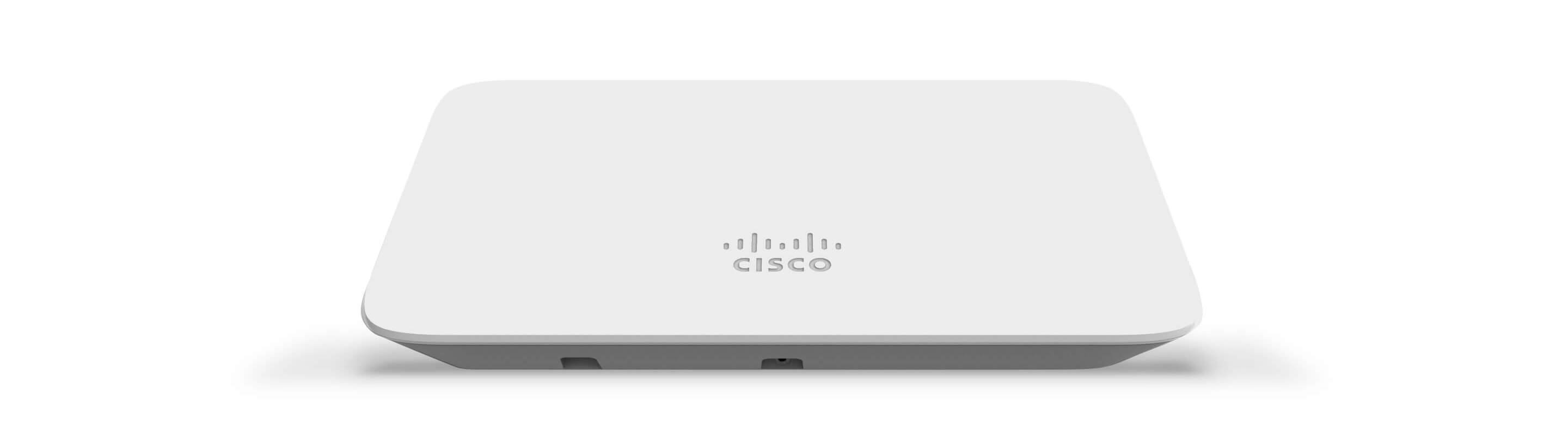

MR20

Cisco Meraki MR20
  • Radios
    • 2.4 GHz 802.11b/g/n/ac client access radio
    • 5 GHz 802.11a/n/ac Wave 2 client access radio
  • Operating Bands
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHZ (UNII-2)
      • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      • 5.725 -5.825 GHz (UNII-3)
  • 802.11ac & 802.11n Capabilities
    • 2×2 multiple input, multiple output (MIMO) with two spatial streams
    • Maximal ratio combining (MRC)
    • Beamforming
    • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
    • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
    • Packet aggregation
  • Power
    • Power over Ethernet: 37-57 V (802.3at compatible)
    • Alternative 12 V DC input
    • Power consumption: 11 W max (802.3af)
    • Power over Ethernet injector sold separately
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling, and wall mount capable
  • Physical Security
    • Two security screw options included
    • Kensington lock hard point
    • Concealed mount plate with anti-tamper cable bay
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95% non-condensing
  • Physical Dimensions
    • 7.95" × 4.88" × 1.02" (202 mm × 124 mm × 25.8 mm), not including deskmount feet or mount plate
    • Weight: 9.6 oz (272 g)
  • Antenna
    • Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
  • Interfaces
    • 1× 10/100/1000 BASE-T Ethernet (RJ45)
    • 1× DC power connector (5.5 mm × 2.5 × mm, center positive)
  • Security
    • Integrated Layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1Q) and tunneling with IPSec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK, OKC, and 802.11r for fast Layer 2 roaming
    • Distributed or centralized Layer 3 roaming
  • LED Indicators
    • 2 Ethernet status for Ethernet ports
    • 1 power/booting/firmware upgrade status
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Compliance
    • Safety Approvals
      • UL 60950-1
      • CAN/CSA-C22.2 No. 60950-1
      • IEC 60950-1
      • EN 60950-1
    • Radio Approvals
      • Canada: FCC Part 15C, 15E, RSS-247
      • Europe: EN 300 328, EN 301 893
      • Australia/NZ: AS/NZS 4268
      • Mexico: NOM-121
      • For additional country-specific regulatory information, please contact Meraki Sales
    • EMI Approvals (Class B)
      • Canada: FCC Part 15B, ICES-003
      • Europe: EN 301 489-1-17, EN 55032, EN 55024
      • Australia/NZ: CISPR 32
    • Exposure Approvals
      • Canada: FCC Part 2, RSS-102
      • Europe: EN 50385, EN 62311
      • Australia: AS/NZS 2772
  • Ordering Information
    • MR20-HW: Meraki MR20 Cloud Managed 802.11ac AP
    • MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
    • MA-INJ-4-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
    • Note: Meraki Enterprise license required

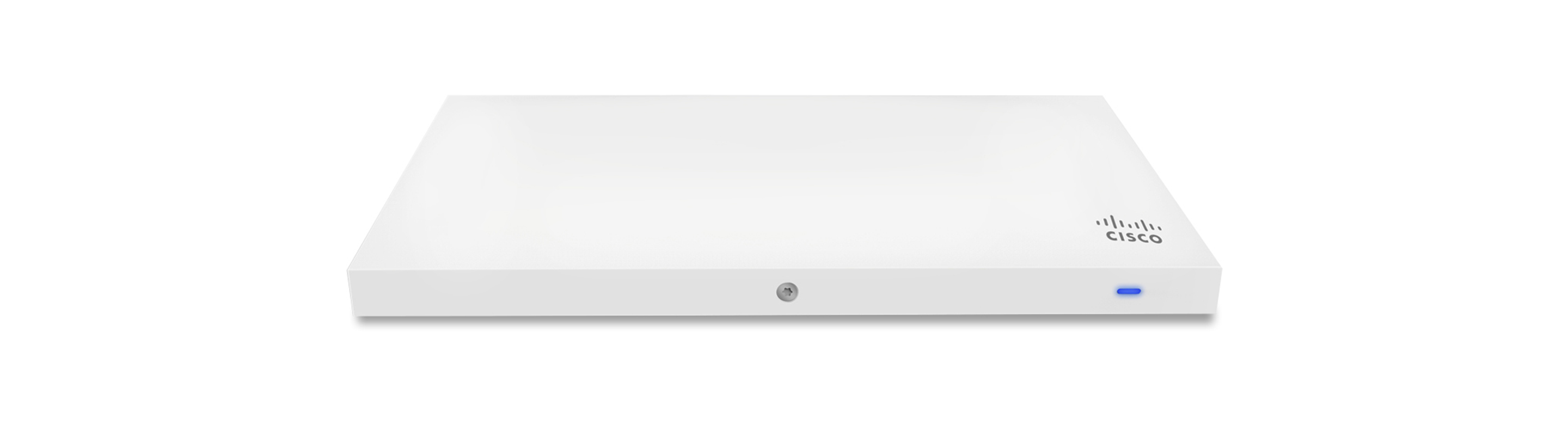

MR33

Cisco Meraki MR33
  • Radios
    • 2.4 GHz 802.11b/g/n/ac client access radio
    • 5 GHz 802.11a/n/ac client access radio
    • 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
    • 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
    • Concurrent operations of all four radios
  • Operating Bands
      • 2.412-2.484 GHz
      • 5.150-5.250 GHz (UNII-1)
      • 5.250-5.350 GHZ (UNII-2)
      • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      • 5.725 -5.825 GHz (UNII-3)
  • 802.11ac & 802.11n Capabilities
    • 2x2 multiple input, multiple output (MIMO) with two spatial streams
    • Maximal ratio combining (MRC)
    • Beamforming
    • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
    • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
    • Packet aggregation
  • Power
    • Power over Ethernet: 37 - 57 V (802.3af compatible)
    • Alternative 12 V DC input
    • Power consumption: 11W max (802.3af)
    • Power over Ethernet injector and DC adapter sold separately
  • Mounting
    • All standard mounting hardware included
    • Desktop, ceiling, and wall mount capable
    • Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
    • Bubble level on mounting cradle for accurate horizontal wall mounting
  • Physical Security
    • Two security screw options (included)
    • Kensington lock hard point
    • Concealed mount plate with anti-tamper cable bay
  • Environment
    • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5 to 95% non-condensing
  • Physical Dimensions
    • 8.5” x 4.3” x 1.3” (215 mm x 110 mm x 32 mm), not including deskmount feet or mount plate
    • Weight: 13.2 oz (376.5 g)
  • Antenna
    • Integrated omni-directional antennas (3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)
  • Interfaces
    • 1 × 10/100/1000 BASE-T Ethernet (RJ45)
    • 1 × DC power connector (5.5 mm x 2.5 mm, center positive)
  • Security
    • Integrated layer 7 firewall with mobile device policy management
    • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
    • Flexible guest access with device isolation
    • VLAN tagging (802.1Q) and tunneling with IPSec VPN
    • PCI compliance reporting
    • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
    • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
    • TKIP and AES encryption
    • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Quality of Service
    • Advanced Power Save (U-APSD)
    • WMM Access Categories with DSCP and 802.1p support
    • Layer 7 application traffic identification and shaping
  • Mobility
    • PMK, OKC, and 802.11r for fast Layer 2 roaming
    • Distributed or centralized layer 3 roaming
  • LED Indicators
    • 4x 2 Ethernet status for Ethernet ports
    • 1 power/booting/firmware upgrade status
  • Warranty
    • Lifetime hardware warranty with advanced replacement included
  • Compliance
    • RoHS
  • Ordering Information
    • MR33-HW
      Meraki MR33 Cloud Managed 802.11ac AP
    • MA-PWR-30W-XX
      Meraki AC Adapter for MR Series (XX = US, EU, UK or AU)
    • MA-INJ-4-XX
      Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
    • Note: Meraki Enterprise license required
Kako do treh dostopnih točk za ceno dveh?
Naročite katerokoli kombinacijo treh dostopnih točk serije MR20 in MR33 in s tem pridobite poseben popust pri kompletu.

Kateri modeli Meraki MR so upravičeni do te promocije?
Za to promocijo so upravičeni modeli Meraki MR20 in MR33 ter pripadajoče licence. Seveda pa lahko kupite katero koli kombinacijo drugih Meraki MR dostopnih točk, vendar ne bodo upravičene do tega popusta.

Kako dolgo bo trajala promocija 3…2…1…. Liftoff?
Promocija 3…2…1…Liftoff traja od 29.oktobra 2018 do 27.aprila 2019


Več vprašanj?
Kontaktirajte nas na prodaja@alef.com
